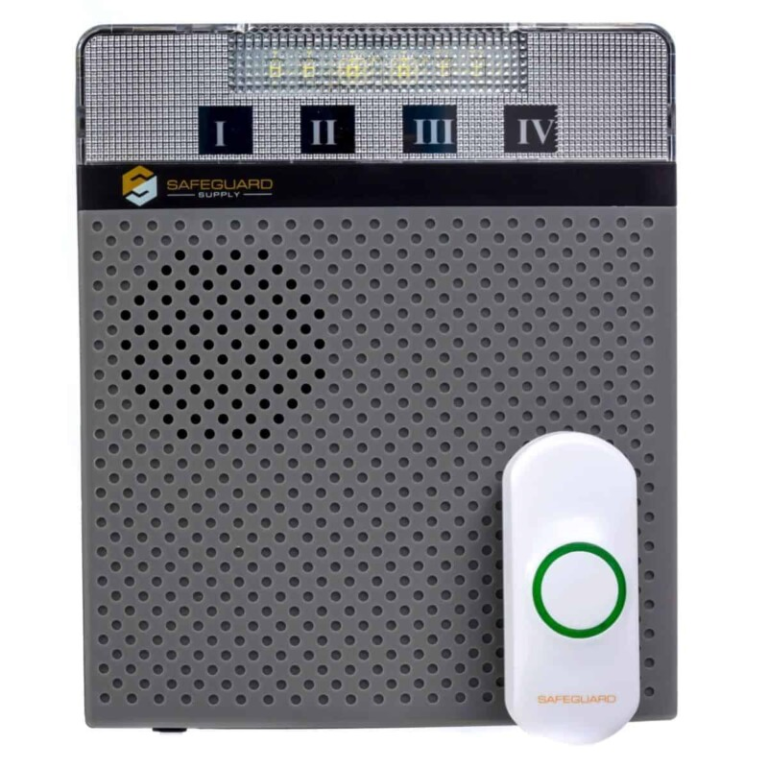

Door Bell Wireless System: LRA-D1000-L

Strobe Alert Features

The LRA-D1000-L combines audio and visual notifications for complete coverage. Choose between sound, strobe, or both to ensure alerts are noticed in any environment.

Battery Powered Chime Benefits

Flexible operation options:

• Dual Power: Battery or AC adapter
• Extended Range: Up to 1,000 feet
• Volume Levels: Up to 90dB
• Visual Alerts: LED strobe light
• Zone Control: 4 LED indicators

Wireless Doorbell Applications

Perfect for multiple settings:

• Large Homes: Complete coverage
• Small Businesses: Customer alerts
• Quiet Areas: Silent strobe mode
• Noisy Spaces: Dual notifications
• Multi-Door Setups: Distinct zones

Technical Specifications

Receiver Features:

• Dimensions: 6.60″H x 5.30″W x 1.70″D
• Melodies: 32 selectable tones
• Zones: 4 with LED indicators
• Power: 3 C batteries or AC adapter
• Frequency: 915 MHz
• Volume: Up to 90dB

Push Button Features:

• Dimensions: 3.00″H x 1.25″W x 1.00″D
• Weather-Resistant: Outdoor rated
• Battery: Long-life lithium included
• LED Indicator: Transmission confirmation
• Lifespan: 2-3 year battery life

Package Contents

• 1 x LRA-DCRX receiver
• 1 x LRA-PBTX push button
• 1 x Lithium battery (button)
• Mounting hardware
• User manual

Compatibility

Works with:

• Additional LRA-PBTX-L buttons
• LRA-EXTX-L doorbell extender transmitter
• LRA-DCRXS-L plugin receiver with strobe light

Installation Guide

The LRA-D1000-L features simple setup with flexible power options. Install batteries or connect power adapter, mount components, and enjoy immediate coverage.

Model Product Features

LRA-D1000-L Specifications:

• Expansive Range: Enjoy up to 1,000 feet of wireless coverage.
• Selector Switch: Tailor your alert system with flash, chime, or both options.
• High Compatibility: Works with LRA series transmitters for a fully integrated system.
• Volume Control: Adjust to suit your environment, with a maximum output of 80 dB.
• Multiple Melodies: Choose from 32 melodies to customize your notification sounds.
• Flexible Powering Options: Operate with 3 C batteries or a plug-in wall transformer (not included).

LRA-PBTX Push Button Features:

• Mounts to wall using supplied mounting hardware
• Outdoor rated
• Hi-powered Lithium battery included. Expect 2-3 year battery life
• Connect up to 4- push buttons to the LRA-DCRX receiver
• Up to 1,000 ft. range
• Green LED flashes to show signal transmitting
• Choose a distinct sound for each connected push button
• When a visitor pushes a button, the receiver plays a selected melody, flashes, or both
• The push button (LRA-PBTX) is 3.00”(H) x 1.25”(W) x 1.00”(D)

LRA-DCRX Receiver Features

• Add up to four transmitters (sensors) per receiver
• Long Range up to 1,000 Feet * This is a line-of-site estimate.  Environmental factors such as exterior and interior walls, metal, construction materials, etc., will reduce the effective range of the product
• The product ships with one receiver (batteries not included) and one wireless push button (batteries included)
• Volume Control
• 915 Mhz Operating Frequency
• You can turn the volume off with the side selector switch.
• Maximum volume is 90dB
• 32 User Selectable Melodies
• Flexible Learning Codes
• 4 Bright Zone Indicator Lights
• Powered by 3 C Batteries or a plug-in wall transformer (not included)
• Compatible with sensors like the LRA-DCTX wireless window/door contacts and LRA-MSTX PIR motion sensor,  available at additional cost
• Additional push buttons are available
• LRA-DCRX Receiver: 6.60”(H) x 5.30” (W) x 1.70”(D)

Elevate your property’s security and convenience with the LRA-D1000-L Wireless door bell system from Safeguard Supply. Whether for home or business, its exceptional range and customizable features make it the perfect choice.
