Commercial Alert System: Build Your Custom Kit

Warehouse Alert System Components

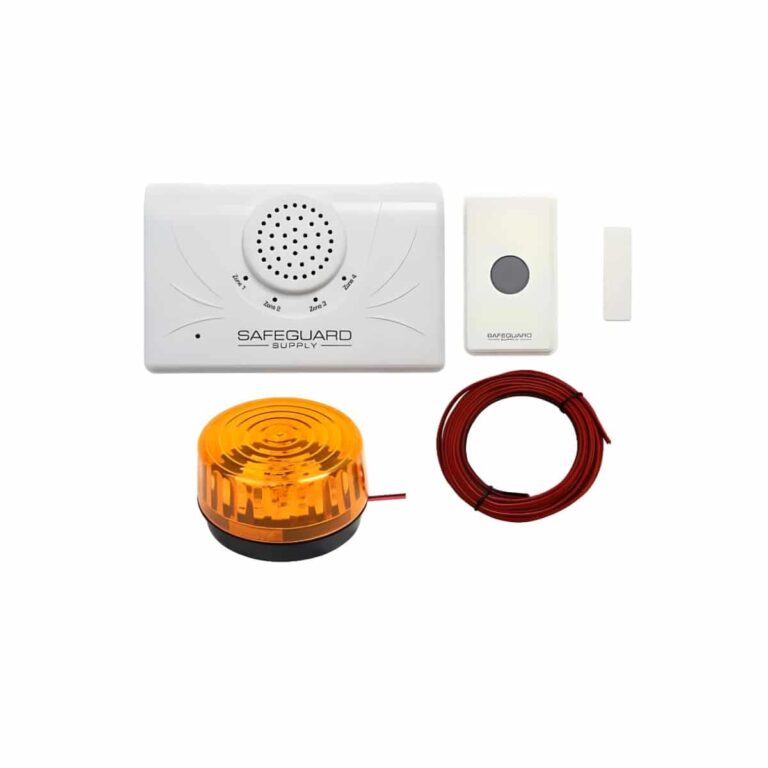

In the bustling environment of a warehouse or workshop, staying alert to every visitor or delivery is crucial yet challenging. The Safeguard Supply Long Range Wireless Doorbell & Alert System is the innovative solution businesses have been waiting for. It combines the robust features of the sensor you choose with the ERA-DCRX receiver and an accessory of choice that adds additional visual & enhanced sound alerts.

A Business Doorbell with Unparalleled Range and Versatility

Our system boasts an industry-leading wireless range of up to 4,000 feet, ensuring comprehensive coverage across large areas. Businesses can tailor the system to meet their unique needs by choosing from various transmitters, such as push buttons, magnetic door contacts, and indoor PIR sensors. Along with selecting a sensor/transmitter, businesses can choose between colors of bright strobe lights, fire alarm bells, sirens, and more to enhance the sound and noticeability of the alert.

Customize your alert solution in three steps:

1. Choose Your Sensor/Transmitter:
   • ERA-UTX: Dual-function magnetic contact or push button
   • ERA-PBTX: Stylish illuminated push button
   • ERA-PIR: Indoor motion detection sensor
2. Core Receiver – ERA-DCRX:
   • 4,000ft wireless range
   • 4 programmable zones
   • 12V DC outputs per zone
   • Supports up to 12 transmitters
3. Select Your Alert Accessory:
   • LED strobe lights (multiple colors)
   • 120dBA siren
   • PSIREN with volume control
   • Fire alarm bell (100dBA)
   • Chrome bell (105dBA)
   • Siren/strobe combinations

System Operation Overview

The system works through three coordinated components:

1. Signal Transmission:
   • Sensor detects activity
   • Wireless signal sent to receiver
   • Up to 4,000ft transmission range
2. Signal Processing:
   • ERA-DCRX receives alert
   • Plays programmed melody
   • Activates 12V DC output
3. Alert Activation:
   • Powers connected accessory
   • Customizable duration settings
   • Multiple alert combinations

Zone Configuration Examples

Scenario 1: Different Alerts Per Door

• Front door: Zone 1, blue strobe
• Back door: Zone 2, red strobe
• Loading dock: Zone 3, siren
• Side entrance: Zone 4, bell

Scenario 2: Group Monitoring

• All entrances: Single zone
• One strobe light
• Common melody
• Unified notification

Scenario 3: Mixed Applications

• Motion sensors: Zones 1-2
• Push buttons: Zones 3-4
• Different accessories per zone
• Distinct melodies for identification

Technical Specifications

ERA-DCRX Receiver:

• Zones: 4 independent
• Transmitters: Up to 12 total
• Power: 12V DC adapter
• Outputs: 4 x 12V DC
• Duration Settings: 2 sec to 2 min
• Melodies: 12 options

Alert Accessories:

• Strobe: Multiple color options
• Siren: 120dBA maximum
• PSIREN: Adjustable volume
• Fire Bell: 100dBA output
• Chrome Bell: 105dBA output

Installation Guide

1. Receiver Setup:
   • Mount ERA-DCRX
   • Connect power
   • Program zones
2. Sensor Installation:
   • Position transmitter
   • Test range
   • Program to zone
3. Accessory Connection:
   • Wire to 12V output
   • Set duration
   • Test system

System Expansion

• Add up to 12 transmitters per receiver
• Mix different sensor types
• Combine multiple accessories
• Create customized alert patterns
• Scale with business growth

This customizable commercial alert system adapts to your specific needs while maintaining professional-grade reliability and range.
