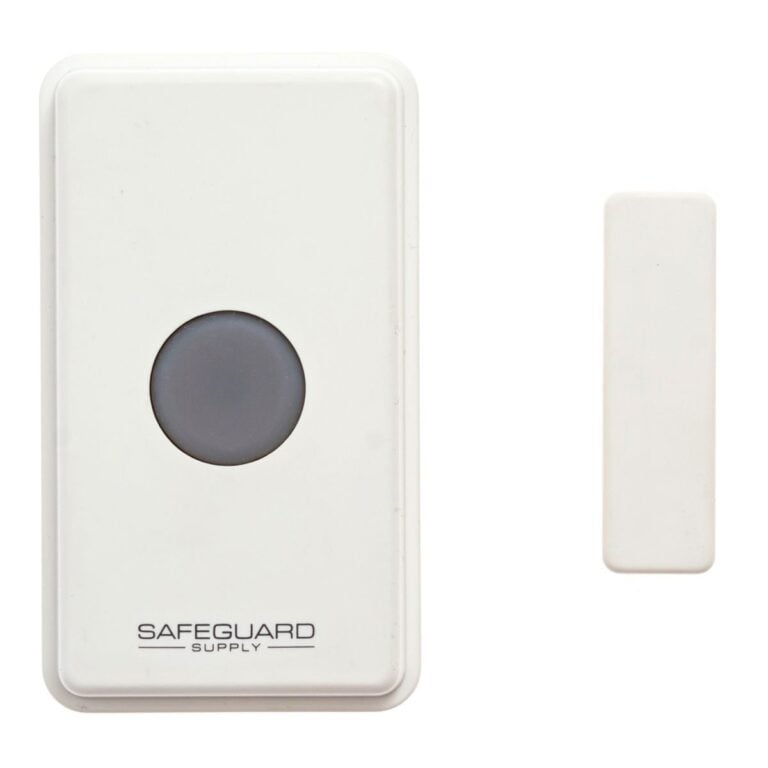

The ERA-UTX is a universal transmitter by Safeguard Supply that acts as a wireless push button or may be used as a magnetic door contact. Rugged in design and outdoor rated, the transmitter may be mounted to an exterior/interior wall as a push button or to a door or window as a door/window magnetic contact.
This product may be purchased separately as an add-on device to expand your current ERA products or as a replacement part. It works when a visitor pushes the center push button (round gray button in center) or when the small magnetic piece is separated from the larger part of the transmitter.
This unit is rugged in design and made for outdoor or indoor use. What truly sets the product apart from other products is the wireless range of this product. With a wireless range of up to 4,000 ft., the transmitter is capable of penetrating thick walls that other wireless products simply cannot do.
When the door is opened, or the push button pressed, the unit will transmit a wireless signal up to 4,000 ft. to a compatible ERA receiver. The plugin desktop ERA-DCRX and the battery powered, portable ERA-VPRX (available late fall 2020). When the receiver receives the transmitted signal it will play a chosen melody or tone.
The ERA series of products are completely expandable; meaning each receiver can work with up to 12 transmitters (the ERA-UTX, the ERA-PIR, and the ERA-DSTX). There is not limit to the number of receivers that can work with each transmitters, allowing you to add multiple chime receivers throughout your location to distribute the sound.
ERA-UTX Universal Transmitter Features:
- Transmits up to 4,000 ft. to ERA receivers (plugin version & portable version).
- ERA-UTX may be used as a outdoor wireless push button and/or an outdoor wireless door or window magnetic contact.
- Triggers when visitor pushes center button or door is opened.
- Relay on end of unit to integrate with other devices.
ERA-UTX Transmitter Specifications:
- Transmitter measures 3.38” x 1.94” x .81”. Magnetic contact measures 2” x .56” x .38”.
- Mounted bracket included for mounting on door or wall.
- Powered by strong, long lasting lithium battery (CR2).
- One relay available for integration. For example, wired push button wired to relay will trigger when transmitter is triggered.
- Operates at 433.92 MHz.
- Compatible with all ERA products.
- Manufactured by Safeguard Supply.
- One year manufacturer's warranty.
