Safeguard Supply ERA-PBVPRX Wireless Push Button and Portable Receiver Kit

Wireless Doorbell Kit for Staff on the Move

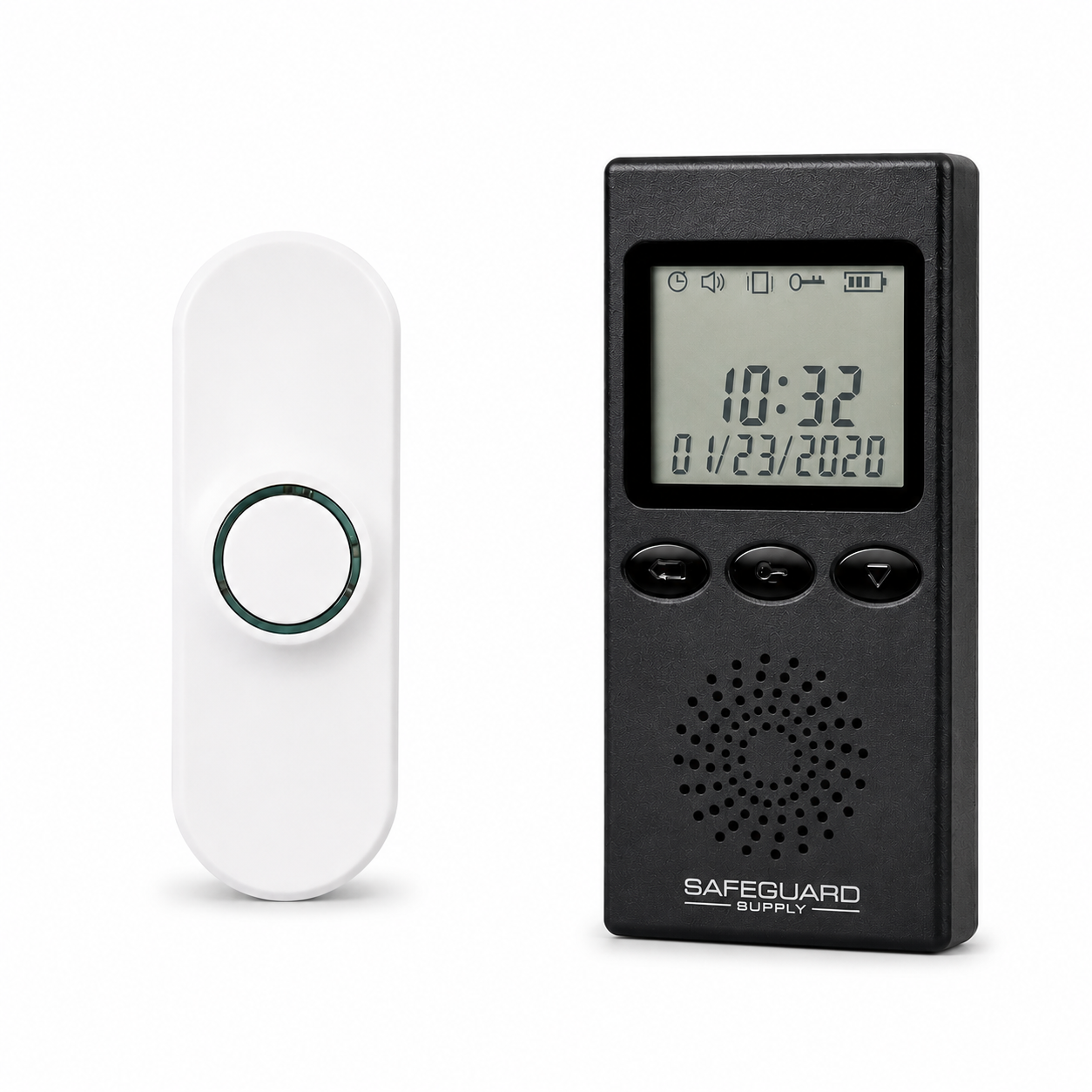

The ERA-PBVPRX wireless push button and receiver kit is part of the Safeguard Supply ERA Series and is designed to deliver long-range doorbell alerts directly to mobile staff. It includes the ERA-PBTX wireless push button transmitter and the ERA-VPRX portable vibrating receiver. When a visitor presses the button, the transmitter sends a signal up to 4,000 feet in line-of-sight conditions to the portable receiver, which can vibrate, sound a chime, or do both so the user does not miss calls at the door.

This setup is particularly useful in environments where background noise is high or where employees frequently move between rooms, aisles, or buildings. Instead of relying on a wall-mounted chime that may not be heard everywhere, the alert travels with the person responsible for answering the door.

ERA-PBTX Long-Range Wireless Push Button

The ERA-PBTX is a long-range wireless push button transmitter designed for outdoor or indoor use. It serves as the doorbell button in this kit, sending a radio signal to compatible ERA receivers whenever it is pressed. The transmitter’s wireless range is rated up to 4,000 feet line-of-sight, giving it enough reach for large homes, offices, or warehouse complexes where doors are far from work areas.

The push button features a halo-style illuminated ring that provides a soft glow, helping visitors locate the button and confirming activation when pressed. The housing is built to withstand typical weather conditions, and the unit is powered by a lithium coin-cell battery designed for long life under normal usage.

• Function: wireless doorbell push button transmitter.
• Wireless range: up to 4,000 ft line-of-sight to ERA receivers.
• Construction: outdoor-rated design suitable for door frames, gate posts, and exterior walls.
• Indicator: lighted halo ring that enhances visibility and shows when the button has been pressed.
• Power source: lithium coin-cell battery with an expected life of about 2–3 years depending on usage.
• Dimensions: approximately 3.0″ H x 2.25″ W x 1.75″ D.
• Mounting: surface-mount plate with included screws or appropriate fasteners for the surface type.

Push Button Placement and Setup

For typical installations, the ERA-PBTX is mounted at the primary customer entrance or another door where visitors or drivers are expected to signal for assistance. It should be installed at a comfortable height so it is easy to see and reach, and on a stable surface that keeps the button securely in place. In some cases, it may be installed on a post near a loading dock or gate to give delivery drivers a convenient way to request attention.

After mounting, the push button is paired to the ERA-VPRX receiver. The receiver is placed into learn mode, the button is pressed, and the two devices store each other’s information. A melody is selected on the receiver so that the tone associated with this button is recognizable. Once pairing and tone selection are complete, pressing the button activates the portable receiver whenever it is within wireless range.

• Typical locations: front doors, side entrances, warehouse doors, gates, and counters.
• Installation height: similar to a standard doorbell height for easy access by visitors.
• Pairing method: place the receiver in program mode, then press the ERA-PBTX button to register it.

ERA-VPRX Portable Receiver with Vibration and Sound

The ERA-VPRX is a compact, portable receiver that provides alerts directly to the person carrying it. Powered by a rechargeable lithium-ion battery, it is designed for several days of typical use between charges. The receiver offers three main alert modes: sound only, vibration only, or sound and vibration together, allowing users to choose what works best for their environment.

The ERA-VPRX supports four volume levels up to around 80 dB and offers multiple melodies so different transmitters can be identified by tone. A backlit display and small indicator icons light up when an alert is received and can show basic information such as signal source and battery status. A belt clip or similar attachment makes it easy to carry on clothing, and the flat back allows it to stand upright on a desk if needed.

• Alert modes: sound only, vibration only, or sound plus vibration.
• Volume: four adjustable levels up to about 80 dB, plus a mute option.
• Wireless range: up to 4,000 ft from ERA transmitters in line-of-sight conditions.
• Power: rechargeable lithium-ion battery with included charger.
• Battery life: approximately 6–7 days of standby time on a full charge, depending on alert frequency and mode.
• Transmitter capacity: can pair with up to 16 ERA transmitters, each with its own melody.
• Dimensions: about 4.0″ H x 1.5″ W x 0.75″ D.
• Operating temperature: roughly -30°F to 120°F.

How the ERA-PBVPRX Kit Works Day to Day

In everyday use, a visitor presses the ERA-PBTX button at the door or gate, causing the transmitter to send a wireless signal to the ERA-VPRX. The portable receiver alerts the user with the selected melody, vibration, or both, letting them know someone is waiting for assistance. Because the receiver is carried on the person, it remains effective as the user moves throughout the building or property, up to the limits of the wireless range.

If more than one push button is added to the system, each can be assigned its own melody so the receiver’s tone tells staff which door was pressed. This can be helpful when using separate buttons at a front door, back door, loading dock, or gated entrance and needing to respond differently depending on the location.

• Alert path: button press at the door triggers sound and/or vibration on the portable receiver.
• Mobility: receiver can be worn on a belt or carried in a pocket for constant coverage.
• Multi-door support: additional ERA-PBTX buttons can be added with distinct melodies.

ERA Series Compatibility and Expansion

Both the ERA-PBTX and ERA-VPRX are part of the Safeguard Supply ERA Series, which means they work with a broad family of compatible transmitters and receivers. The ERA-VPRX can learn up to sixteen transmitters, so you can add driveway sensors, indoor motion sensors, or door contacts alongside the push button and assign each its own tone. The ERA-PBTX can also be paired with other ERA receivers if you later decide to add a fixed chime or strobe receiver in addition to the portable unit.

This expandability allows the ERA-PBVPRX kit to start as a simple wireless doorbell and grow into a multi-point alert system for larger properties. As needs change, you can add more transmitters and receivers without replacing the original components.

• Series: Safeguard Supply ERA long-range wireless platform.
• Compatible transmitters: ERA-PBTX plus other ERA push buttons, motion sensors, driveway sensors, and door contacts.
• Compatible receivers: ERA-VPRX and other ERA receivers added separately, such as plug-in or desktop units.

Key Features of the ERA-PBVPRX Wireless Doorbell Kit

• Complete wireless doorbell kit with long-range push button and portable vibrating receiver.
• Up to 4,000 ft wireless range between ERA-PBTX and ERA-VPRX in line-of-sight conditions.
• Outdoor-rated push button with illuminated halo and long-life battery.
• Portable alerts with sound, vibration, or both, suitable for staff who cannot stay near a fixed chime.
• Rechargeable receiver offering about 6–7 days of standby time per charge.
• Expandable system that supports up to 16 transmitters and additional ERA receivers.
• Typical applications: warehouses, retail shops, offices, loading docks, and residential gates.

What’s Included in the ERA-PBVPRX Kit

• One Safeguard Supply ERA-PBTX long-range wireless push button transmitter.
• One Safeguard Supply ERA-VPRX portable receiver with rechargeable battery.
• Mounting plate and hardware for the ERA-PBTX push button.
• Charging cable and power adapter for the ERA-VPRX receiver.
• User documentation for both the ERA-PBTX and ERA-VPRX components.

Product Specifications

• System type: wireless doorbell kit with push button and portable vibrating receiver.
• Kit model: ERA-PBVPRX (Safeguard Supply ERA Series).
• Transmitter: ERA-PBTX wireless push button doorbell.
• Receiver: ERA-VPRX portable receiver with sound and vibration.
• Wireless range: up to 4,000 ft line-of-sight between transmitter and receiver.
• Power – push button: lithium coin-cell battery (included).
• Power – receiver: rechargeable lithium-ion battery with included charger.
• Alert modes (receiver): sound only, vibration only, or sound plus vibration.
• Volume: four adjustable levels up to approximately 80 dB.
• Transmitter capacity (receiver): up to 16 ERA transmitters can be paired.
• Receiver dimensions: about 4.0″ H x 1.5″ W x 0.75″ D.
• Operating temperature: approximately -30°F to 120°F.
• Frequency: 433 MHz.
