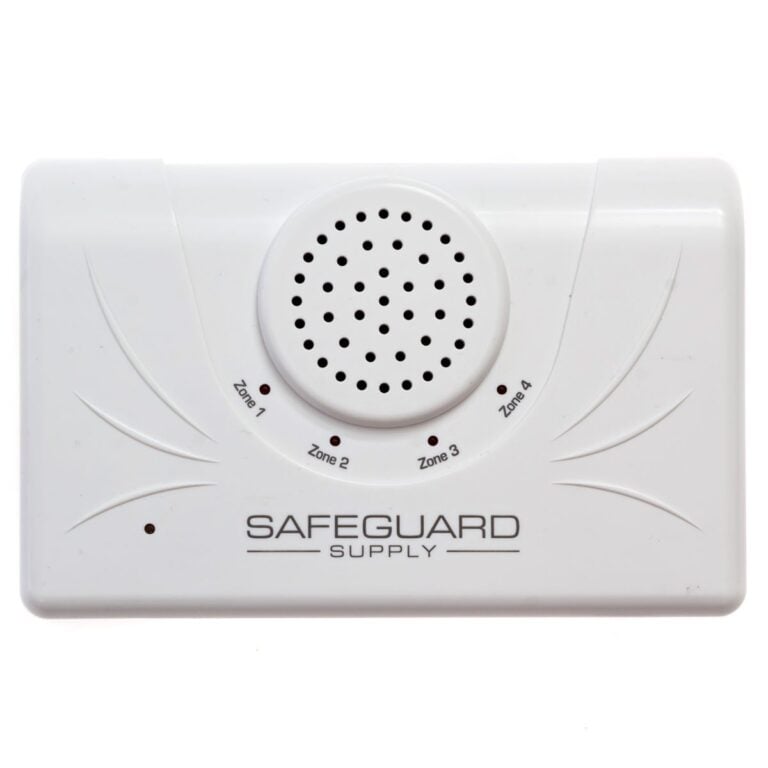

Image 1 of 3: Era Dcrx Safeguard Supply Jpg
Era Dcrx Safeguard Supply JpgSale
4,000 ft commercial coverage

Door Chime for Business: ERA-DCRX

$54.00$68.95
In stock

4 interest-free payments of $13.50 with Afterpay

The ERA-DCRX is a commercial wireless door chime receiver with four programmable zones, each with its own 12V DC output and a shared C-FORM relay for triggering external devices. It works with up to 12 ERA transmitters (three per zone) over a 4,000 ft line-of-sight range, so it suits offices, shops, and warehouses that need zoned entrance alerts and device control.

Best forWarehouses and commercial sites
Range familyERA up to 4,000 ft
ExpansionReceivers, sensors, strobes, sirens

SKU: ERA-DCRX

Category: ERA Series

Brand: Safeguard Supply

PDF user manualView installation and setup guideReceiver soundsPreview ERA receiver sounds

Free shipping on orders over $100!

Satisfaction Guaranteed
Live Customer Support
Secure Payments
Guaranteed Safe Checkout
VisaMastercardAmexDiscoverPayPalApple PayG Pay

Accessories & Add-Ons

Expand or complete your system with compatible components.

Era Pbtx Wireless Push Button With Almost Mile Range Jpg
Wireless Doorbell Button: ERA-PBTX

ERA-PBTX

The ERA-PBTX wireless doorbell button transmits up to 4,000 ft to any ERA receiver, with a green LED for nighttime visibility and a weatherproof housing rated from -4°F to 140°F. The included lithium battery lasts 2-3 years, and you can mount it with the supplied tape or screws. A dependable outdoor doorbell button for large properties, gates, and driveways.

$29.00
Era Extx Wired Doorbell Wireless Transmitter Jpg
Doorbell Signal Transmitter: ERA-EXTX

ERA-EXTX

The ERA-EXTX is a doorbell signal transmitter that wires into your existing wired doorbell and broadcasts the press up to 4,000 ft to compatible ERA receivers. It is battery-powered, supports front and back doorbells on the same system, and works with all ERA receivers. Note: it is not compatible with video doorbells.

$35.00
Era Pir Front 2 Jpg
Wireless Motion Sensor: ERA-PIR

ERA-PIR

The ERA-PIR wireless motion sensor uses passive infrared to detect movement and signal any ERA receiver over a 4,000 ft line-of-sight range. Its detection field adjusts from 9 to 18.5 ft wide, so you can aim it at an entrance, hallway, or driveway and cut down on false alerts. It runs up to 12 months on a 9V battery and includes an aluminum mounting bracket.

$39.00
Era Utx Transmitter Contact Jpg
Wireless Door Sensor Button: ERA-UTX

ERA-UTX

The ERA-UTX is a wireless door sensor button that works as either a push button or a magnetic door/window contact, with a range up to 4,000 ft. It has a weatherproof build for indoor or outdoor use, an 18-month battery life, and works with all ERA receivers. Use it for entrance, delivery, and loading-dock alerts.

$50.00
Era Dstx Driveway Sensor For Era Series Alarm Kits Jpg
ERA-DSTX Wireless Driveway Motion Sensor

ERA-DSTX

The ERA-DSTX is an outdoor wireless motion detector with a 4,000 ft range and PIR sensing that picks up both vehicles and people. It works with every ERA receiver, including the ERA-DCRX desktop and ERA-VPRX portable units, and its weather-resistant housing holds up outdoors year-round. Use it as a driveway motion alarm or an entryway alert on large properties.

$55.00
Era Rxpg Plugin Receiver With Strobe Light Jpg
Plugin Strobe Light Alert Receiver: ERA-RXPG

ERA-RXPG

The ERA-RXPG is a plug-in receiver with a built-in strobe that pairs with up to 12 ERA transmitters and sensors, from push buttons to motion sensors and doorbell extenders. Run it in sound, strobe, or sound-and-strobe mode, with four volume levels up to 95 dB and a 4,000 ft range. A flexible alert point for property monitoring in noisy or quiet areas.

$43.95
Era Dcrx Safeguard Supply Jpg
Door Chime for Business: ERA-DCRXThis product

ERA-DCRX

The ERA-DCRX is a commercial wireless door chime receiver with four programmable zones , each with its own 12V DC output and a shared C-FORM relay for triggering external devices. It works with up to 12 ERA transmitters (three per zone) over a 4,000 ft line-of-sight range, so it suits offices, shops, and warehouses that need zoned entrance alerts and device control.

$54.00

1 item selected · Total: $54.00

WHY THIS SYSTEM

Built for larger spaces where standard doorbells fail.

The ERA-DCRX is a desktop receiver for commercial alert setups. It monitors four separate zones, and each zone supports up to three transmitters and provides a dedicated 12V DC output for powering an external device such as a strobe, siren, or bell.

  • +Strong fit for warehouses, retail counters, loading docks, delivery alerts, and remote buildings.
  • +Expandable with multiple transmitters, sensors, receivers, and alert accessories.
  • +ERA-DCRX style receivers can support accessory outputs and integration paths.
  • +Covers doors, docks, counters, and remote entrances across larger commercial footprints.
  • +Helps staff respond faster to visitors, deliveries, curbside pickups, and restricted-area activity.
  • +Supports expansion with additional transmitters, receivers, strobes, sirens, and relay-capable accessories.
What the ERA-DCRX does

The ERA-DCRX is a desktop receiver for commercial alert setups. It monitors four separate zones, and each zone supports up to three transmitters and provides a dedicated 12V DC output for powering an external device such as a strobe, siren, or bell.

Key features
  • Independent zones: zone-specific settings
  • Capacity: up to 12 ERA transmitters or sensors (3 per zone)
  • Four DC outputs: one per zone at 12V
  • Adjustable timing: 5 seconds to 2 minutes activation
  • Relay: C-FORM relay for automation
  • LED indicators: visual zone status
  • Volume: 4 levels, plus mute and off
Specifications
  • Zones: 4 programmable
  • Range: up to 4,000 ft line-of-sight
  • Power input: 12V DC adapter
  • Outputs: 4 × 12V DC, 1 × C-FORM relay
  • Volume: 4 levels + mute + off
  • Rating: indoor use
In the box
  • 1 × ERA-DCRX receiver
  • 1 × 12V DC power adapter (5 ft cord)
  • User manual
Compatible transmitters

Works with ERA series transmitters, including the ERA-PBTX push button, ERA-UTX universal transmitter, ERA-PIR motion sensor, ERA-DSTX driveway sensor, and ERA-EXTX doorbell transmitter.

Installation and setup

Connect power, place the receiver where you need it, and program each transmitter to a specific zone. Setup is straightforward and the mounting is flexible.

Power Adapter Specifications and International Use

The ERA-DCRX uses its supplied plug-in AC/DC power adapter.

  • AC input: 100-240V AC, 50/60Hz, 0.4A.
  • DC output: 12V DC, 1.0A.
  • Wall plug: US-style two-flat-blade plug (Type A). Indoor use only; keep the adapter dry.
USA and Canada: Connect to a compatible standard wall outlet. Europe and other destinations: On a 100-240V AC, 50/60Hz supply, use a destination-compatible travel plug adapter if the outlet shape differs. Most continental European destinations need a suitable round-pin adapter; the UK and Ireland use Type G, and Australia and New Zealand use Type I. A voltage converter is not needed within the labeled input range. A travel plug adapter changes the plug fit only; it does not change voltage.

Check the label on your own power supply before use, as versions may differ. Keep the correct adapter with its receiver: the ERA-RXPG uses 5V DC; the ERA-DCRX and LRA-PLUG listed here supply 12V DC. Do not interchange adapters based only on plug fit. Replacement voltage, current capacity, connector size and polarity must match the receiver. These ratings apply to receiver power; electrical compatibility alone does not establish wireless approval in another country.

The ERA-DCRX receiver has four 12V DC outputs, one per zone. When triggered, the active output supplies 900 mA.

Manuals & resources

Download setup and support documents for this product.

Use these PDFs for installation, pairing, troubleshooting, and compliance details when they are included by the manufacturer.

PDF manual

ERA-DCRX Manual

Download the PDF resource for setup, product details, and support reference.

  • Installation and setup steps for this product.
  • Pairing, placement, and receiver or transmitter setup notes.
  • Wiring, power, mounting, or accessory connection details.
Download PDF
Common questions

Wireless doorbell buying questions, answered.

Is ERA only for warehouses?

No. ERA is strongest for warehouses and large commercial spaces, but it also fits retail stores, offices, delivery doors, and remote entrances.

Can it trigger strobes or sirens?

ERA receiver messaging highlights 12V DC outputs and C-FORM relay options on compatible models for external alert devices.

Will building materials affect range?

Yes. Concrete, brick, metal, and other materials reduce effective distance compared with open line-of-sight range.
