Era Dsdcr Driveway Alarm Kit Webp
4,000 ft commercial coverage

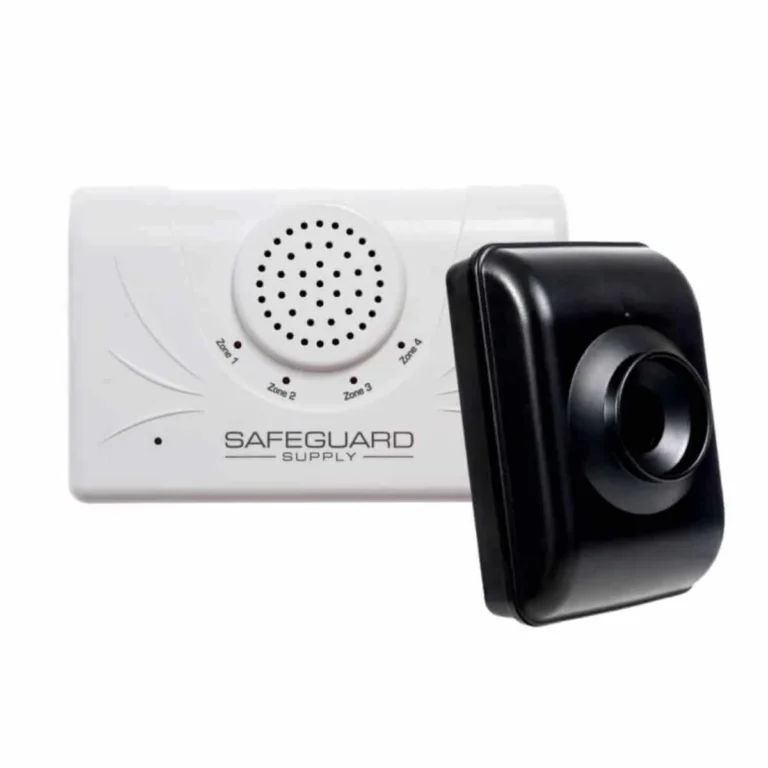

Professional Driveway Alarm System: ERA-DSDCR

1 answered question
$99.95
In stock

4 interest-free payments of $24.99 with Afterpay

The ERA-DSDCR is a driveway alarm system that ships with an outdoor-rated ERA-DSTX PIR sensor and an ERA-DCRX receiver, with a range of up to 4,000 ft. It offers programmable zones, four 12V DC outputs plus a C-FORM relay for accessories, and support for up to 12 sensors. Built for large properties that need reliable vehicle and visitor detection.

Best forWarehouses and commercial sites
Range familyERA up to 4,000 ft
ExpansionReceivers, sensors, strobes, sirens

SKU: ERA-DSDCR

Category: ERA Series

Brand: Safeguard Supply

1
Description & specs
PDF user manualView installation and setup guideReceiver soundsPreview ERA receiver sounds

Free shipping on orders over $100!

Satisfaction Guaranteed
Live Customer Support
Secure Payments
Guaranteed Safe Checkout
VisaMastercardAmexDiscoverPayPalApple PayG Pay

Accessories & Add-Ons

Expand or complete your system with compatible components.

Era Rxpg Plugin Receiver With Strobe Light Jpg
Plugin Strobe Light Alert Receiver: ERA-RXPG

ERA-RXPG

The ERA-RXPG is a plug-in receiver with a built-in strobe that pairs with up to 12 ERA transmitters and sensors, from push buttons to motion sensors and doorbell extenders. Run it in sound, strobe, or sound-and-strobe mode, with four volume levels up to 95 dB and a 4,000 ft range. A flexible alert point for property monitoring in noisy or quiet areas.

$43.95
Era Dcrx Safeguard Supply Jpg
Door Chime for Business: ERA-DCRX

ERA-DCRX

The ERA-DCRX is a commercial wireless door chime receiver with four programmable zones , each with its own 12V DC output and a shared C-FORM relay for triggering external devices. It works with up to 12 ERA transmitters (three per zone) over a 4,000 ft line-of-sight range, so it suits offices, shops, and warehouses that need zoned entrance alerts and device control.

$54.00
Era Vprx Long Range Portable Receiver Jpg
Portable Door Buzzer: ERA-VPRX

ERA-VPRX

The ERA-VPRX is a portable door buzzer for staff who move around a large facility. It clips to a belt and alerts you by sound, vibration, or both over a 4,000 ft range, and supports up to 16 transmitters, each with its own melody. The rechargeable receiver has 4 volume levels, an LED backlight, and up to 6-7 days of standby battery life.

$62.95
Era Pbtx Wireless Push Button With Almost Mile Range Jpg
Wireless Doorbell Button: ERA-PBTX

ERA-PBTX

The ERA-PBTX wireless doorbell button transmits up to 4,000 ft to any ERA receiver, with a green LED for nighttime visibility and a weatherproof housing rated from -4°F to 140°F. The included lithium battery lasts 2-3 years, and you can mount it with the supplied tape or screws. A dependable outdoor doorbell button for large properties, gates, and driveways.

$29.00
Era Extx Wired Doorbell Wireless Transmitter Jpg
Doorbell Signal Transmitter: ERA-EXTX

ERA-EXTX

The ERA-EXTX is a doorbell signal transmitter that wires into your existing wired doorbell and broadcasts the press up to 4,000 ft to compatible ERA receivers. It is battery-powered, supports front and back doorbells on the same system, and works with all ERA receivers. Note: it is not compatible with video doorbells.

$35.00
Era Utx Transmitter Contact Jpg
Wireless Door Sensor Button: ERA-UTX

ERA-UTX

The ERA-UTX is a wireless door sensor button that works as either a push button or a magnetic door/window contact, with a range up to 4,000 ft. It has a weatherproof build for indoor or outdoor use, an 18-month battery life, and works with all ERA receivers. Use it for entrance, delivery, and loading-dock alerts.

$50.00
Era Dsdcr Driveway Alarm Kit Webp
Professional Driveway Alarm System: ERA-DSDCRThis product

ERA-DSDCR

The ERA-DSDCR is a driveway alarm system that ships with an outdoor-rated ERA-DSTX PIR sensor and an ERA-DCRX receiver, with a range of up to 4,000 ft. It offers programmable zones, four 12V DC outputs plus a C-FORM relay for accessories, and support for up to 12 sensors. Built for large properties that need reliable vehicle and visitor detection.

$99.95

1 item selected · Total: $99.95

WHY THIS SYSTEM

Built for larger spaces where standard doorbells fail.

The ERA-DSDCR pairs the outdoor ERA-DSTX PIR sensor with the ERA-DCRX receiver to detect vehicles and visitors and alert you up to 4,000 ft away. The long range and PIR sensing suit long driveways and larger sites where shorter-range alarms fall short.

  • +Strong fit for warehouses, retail counters, loading docks, delivery alerts, and remote buildings.
  • +Expandable with multiple transmitters, sensors, receivers, and alert accessories.
  • +ERA-DCRX style receivers can support accessory outputs and integration paths.
  • +Covers doors, docks, counters, and remote entrances across larger commercial footprints.
  • +Helps staff respond faster to visitors, deliveries, curbside pickups, and restricted-area activity.
  • +Supports expansion with additional transmitters, receivers, strobes, sirens, and relay-capable accessories.
What the ERA-DSDCR does

The ERA-DSDCR pairs the outdoor ERA-DSTX PIR sensor with the ERA-DCRX receiver to detect vehicles and visitors and alert you up to 4,000 ft away. The long range and PIR sensing suit long driveways and larger sites where shorter-range alarms fall short.

Detection and control
  • Multiple zone programming
  • Customizable alert melodies
  • Adjustable detection sensitivity
  • Four-level volume control
  • Accessory integration through the 12V DC outputs
The outdoor-rated sensor works through the seasons, and its PIR design helps limit false alerts while keeping detection consistent.

Where it fits
  • Large residential properties: monitor long driveways and entry points
  • Commercial facilities: track vehicle arrivals and departures
  • Industrial sites: cover multiple access points
  • Remote locations: monitor distant entry areas
Technical specifications

Receiver (ERA-DCRX):

  • Zones: 4 programmable
  • Sensor capacity: up to 12
  • Volume levels: 4 + mute
  • Alert options: 12 selectable melodies
  • Power: 12V DC adapter
  • Outputs: 4 x 12V DC, 1 x C-FORM relay
  • Maximum range: 4,000 feet
Sensor (ERA-DSTX):

  • Range: 4,000 feet
  • Housing: outdoor-rated
  • Detection: PIR technology
  • Battery: 9V (included)
  • Mounting: adjustable bracket
  • Weather resistance: all-season protection
In the box
  • 1 x ERA-DCRX receiver
  • 1 x ERA-DSTX driveway sensor
  • 1 x 12V DC power adapter
  • 1 x mounting bracket for sensor
  • Installation hardware for sensor
  • User manual
Compatibility
  • Works with all ERA series transmitters
  • Expandable with additional ERA-DSTX sensors
  • Compatible with 12V DC accessories
  • Integrates with external alarm systems via the C-FORM relay
  • Supports multiple receiver configurations
Installation and setup

There is no wiring between the sensor and receiver. Mount the sensor on its adjustable bracket for the coverage you need, then program zones and melodies. Setup covers:

  • No wiring between sensor and receiver
  • Simple zone programming
  • Adjustable mounting options
  • Quick accessory integration
  • Multiple positioning possibilities
See the full ERA series for compatible sensors and accessories.

Power Adapter Specifications and International Use

The ERA-DCRX receiver in this kit uses its supplied plug-in AC/DC power adapter.

  • AC input: 100-240V AC, 50/60Hz, 0.4A.
  • DC output: 12V DC, 1.0A.
  • Wall plug: US-style two-flat-blade plug (Type A). Indoor use only; keep the adapter dry.
USA and Canada: Connect to a compatible standard wall outlet. Europe and other destinations: On a 100-240V AC, 50/60Hz supply, use a destination-compatible travel plug adapter if the outlet shape differs. Most continental European destinations need a suitable round-pin adapter; the UK and Ireland use Type G, and Australia and New Zealand use Type I. A voltage converter is not needed within the labeled input range. A travel plug adapter changes the plug fit only; it does not change voltage.

Check the label on your own power supply before use, as versions may differ. Keep the correct adapter with its receiver: the ERA-RXPG uses 5V DC; the ERA-DCRX and LRA-PLUG listed here supply 12V DC. Do not interchange adapters based only on plug fit. Replacement voltage, current capacity, connector size and polarity must match the receiver. These ratings apply to receiver power, not the transmitter or an existing wired doorbell transformer; electrical compatibility alone does not establish wireless approval in another country.

Manuals & resources

Download setup and support documents for this product.

Use these PDFs for installation, pairing, troubleshooting, and compliance details when they are included by the manufacturer.

PDF manual

ERA-DSDCR Manual

Download the PDF resource for setup, product details, and support reference.

  • Installation and setup steps for this product.
  • Pairing, placement, and receiver or transmitter setup notes.
  • Wiring, power, mounting, or accessory connection details.
Download PDF
Common questions

Wireless doorbell buying questions, answered.

Is ERA only for warehouses?

No. ERA is strongest for warehouses and large commercial spaces, but it also fits retail stores, offices, delivery doors, and remote entrances.

Can it trigger strobes or sirens?

ERA receiver messaging highlights 12V DC outputs and C-FORM relay options on compatible models for external alert devices.

Will building materials affect range?

Yes. Concrete, brick, metal, and other materials reduce effective distance compared with open line-of-sight range.

Setup & compatibility guides

Related FAQ articles for this product family.

Q&A

ERA-DCRX 12V Output Wiring: Wire Distance & Multiple Strobes

Learn how to wire 12V strobes to the ERA-DCRX receiver, compare estimated wire distances, and plan multiple accessories within the 400mA output limit.

Read full answer →Q&A

Powering Your Safeguard Supply Receiver at Home or Abroad

Find the right power adapter for your Safeguard Supply ERA or LRA receiver, understand voltage requirements, and prepare for use outside the United States.

Read full answer →
