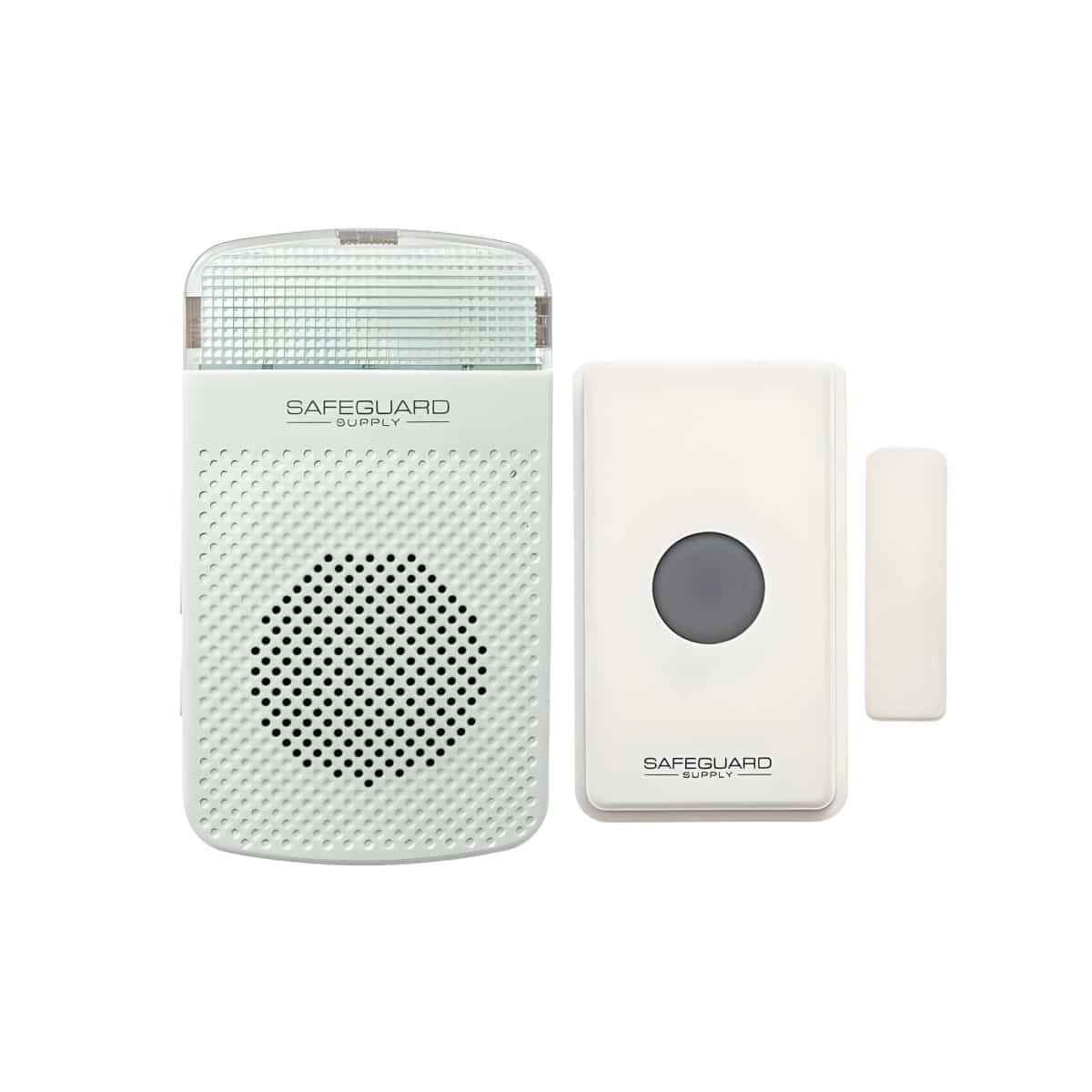

Safeguard Supply ERA-UTRXPG Wireless Entry Alert Kit with Strobe Receiver

The ERA-UTRXPG entry alert kit is built around two ERA Series components from Safeguard Supply: the ERA-UTX extended range universal transmitter and the ERA-RXPG plug-in strobe receiver. Together they create a wireless alert system that can be configured as a doorbell, a door contact entry alert, or a combination of both. The wireless range between transmitter and receiver is rated up to 4,000 feet in line-of-sight conditions, which is well suited for larger homes, offices, and commercial spaces where typical wireless doorbells do not reach.

In a push button configuration, the ERA-UTX serves as the doorbell button at an entry door or gate. In a magnetic contact configuration, it monitors a door or gate and triggers the receiver whenever that opening is used. The ERA-RXPG then signals staff with a selected chime tone and a flashing strobe, or with strobe alone if sound is not desired.

The ERA-UTX is a dual-function transmitter that can work either as a wireless push button or as a magnetic door/window sensor. In push button mode, the front button acts as a doorbell or call button. In door contact mode, a supplied magnet is aligned with the transmitter, and the device triggers when the magnet moves away as the door or window opens. In both cases, the ERA-UTX sends a radio signal to compatible ERA receivers.

The unit is powered by a long-life lithium battery and is housed in a weather-resistant enclosure, allowing it to be used at covered exterior doors as well as interior locations. Its wireless range is rated up to 4,000 feet line-of-sight, which helps maintain a reliable link even through typical building materials such as walls and floors.

• Transmitter type: dual-function push button and magnetic door contact.

• Wireless range: up to 4,000 ft line-of-sight to ERA receivers.

• Power source: CR123A lithium battery (included).

• Housing: weather-resistant enclosure suitable for covered outdoor and indoor installations.

• Indicators: LED used for test/activation confirmation.

• Mounting: surface-mount on doors, frames, walls, or gate posts using included hardware.

When used as a wireless doorbell button, the ERA-UTX is typically mounted near the main entry door or a side entrance where visitors arrive. Pressing the button sends a signal to the ERA-RXPG receiver and causes the chosen chime tone to play and, if configured, the strobe to flash. This setup functions like a long-range door chime and is suitable for front doors, service doors, and gates.

In door contact mode, the ERA-UTX is installed with its magnetic contact on a door or gate, and the magnet is aligned with the sensor when the door is closed. Opening the door separates the magnet from the transmitter and triggers a wireless signal. This is commonly used for back doors, internal service doors, or restricted areas where staff need alerts whenever a door opens.

• Push button mode: use the front button as a doorbell or call button for visitors or staff.

• Door contact mode: monitor a door opening with the included magnet and trigger on open.

• Typical locations: front doors, side entrances, warehouse doors, gates, or internal access doors.

The ERA-RXPG is a plug-in wireless receiver designed to work with ERA transmitters including the ERA-UTX. It plugs into a standard 120V wall outlet and provides three operating modes: sound only, strobe only, or sound and strobe together. When the ERA-UTX sends a signal, the receiver plays the selected chime tone, flashes the strobe, or both, depending on the chosen mode.

The receiver offers four volume levels up to approximately 95 dB at the highest setting, along with twelve selectable melodies. This allows different tones to be assigned to different transmitters if the system is expanded beyond the initial kit. The bright front-facing strobe makes it a good fit for noisy environments and for users who need a visual indicator in addition to sound.

• Power: plugs into a standard 120V AC outlet.

• Operating modes: sound only, strobe only, or sound plus strobe.

• Volume: four adjustable levels up to roughly 95 dB.

• Melodies: 12 selectable tones to differentiate transmitters or uses.

• Wireless range: up to 4,000 ft line-of-sight from ERA transmitters.

• Capacity: can learn up to 12 different ERA transmitters or sensors per receiver.

• Approximate size: 4.75" H x 2.75" W x 1.5" D.

In a typical ERA-UTRXPG setup, the ERA-UTX is configured either as a push button or as a door contact and mounted at the location to be monitored. The ERA-RXPG is plugged into an outlet in an office, counter area, or other location where staff are present. When a visitor presses the button or opens the monitored door, the ERA-UTX transmits to the receiver and the ERA-RXPG responds with the programmed tone and strobe mode.

If multiple ERA receivers are used in the building, the ERA-UTX can be learned into more than one device so the same event alerts people in different rooms. Likewise, additional transmitters can be added and assigned different melodies so staff can tell which door or button triggered the alert without looking at the receiver.

• Alert path: push button press or door opening triggers sound and/or strobe at the receiver.

• Placement flexibility: receiver can be plugged into any indoor outlet within range, and multiple receivers can be added if desired.

• Multi-device use: one ERA-UTX can trigger more than one ERA-RXPG or other ERA receivers.

Both the ERA-UTX and ERA-RXPG belong to the Safeguard Supply ERA Series, which means they can integrate with a wide range of other ERA transmitters and receivers. Additional sensors such as driveway motion detectors, indoor PIR sensors, and wired doorbell extenders can be added and programmed to the same ERA-RXPG. Each transmitter can be assigned its own tone, making it straightforward to distinguish a front doorbell press from a warehouse door opening or a driveway sensor activation.

There is also flexibility on the receiving side: you can add desktop receivers, portable vibrating receivers, or additional plug-in receivers to cover more areas without changing the original ERA-UTX installation. This makes the ERA-UTRXPG kit a starting point for a broader property-wide entry alert system based on a common 4,000-foot wireless platform.

• Series: part of the Safeguard Supply ERA long-range wireless family.

• Compatible transmitters: ERA-UTX plus other ERA push buttons, motion sensors, driveway sensors, and extenders.

• Compatible receivers: ERA-RXPG, ERA-DCRX, ERA-VPRX, and additional ERA-RXPG units.

• Dual-purpose kit that can act as a wireless doorbell or a door contact entry alert.

• Up to 4,000 ft wireless range between the ERA-UTX transmitter and ERA-RXPG receiver in line-of-sight conditions.

• Weather-resistant transmitter suitable for covered outdoor use or indoor door monitoring.

• Plug-in receiver with strobe providing sound only, strobe only, or combined alerts.

• Loud chime output with four volume levels and twelve available melodies.

• Expandable system supporting up to 12 transmitters per receiver and multiple receivers per transmitter.

• Typical applications: store entrances, warehouse doors, office doors, gates, and general entry alert situations.

• One Safeguard Supply ERA-UTX long-range universal transmitter (push button and magnetic door contact).

• One Safeguard Supply ERA-RXPG plug-in wireless receiver with built-in strobe and chime.

• Magnet and mounting hardware for door contact use of the ERA-UTX.

• Lithium battery for the ERA-UTX transmitter (pre-installed or included).

• User documentation for both ERA-UTX and ERA-RXPG components.

• System type: wireless entry alert kit with universal transmitter and plug-in strobe receiver.

• Kit model: ERA-UTRXPG (Safeguard Supply ERA Series).

• Transmitter: ERA-UTX dual-function push button and magnetic door contact.

• Receiver: ERA-RXPG plug-in chime and strobe receiver.

• Wireless range: up to 4,000 ft line-of-sight between transmitter and receiver.

• Power – transmitter: CR123A lithium battery.

• Power – receiver: plugs into standard 120V AC outlet.

• Alert modes (receiver): sound only, strobe only, or sound plus strobe.

• Volume: four levels up to approximately 95 dB.

• Melodies: 12 selectable tones.

• Receiver capacity: up to 12 ERA transmitters or sensors per ERA-RXPG.

• Receiver dimensions: about 4.75" H x 2.75" W x 1.5" D.

• Frequency: 433 MHz.
